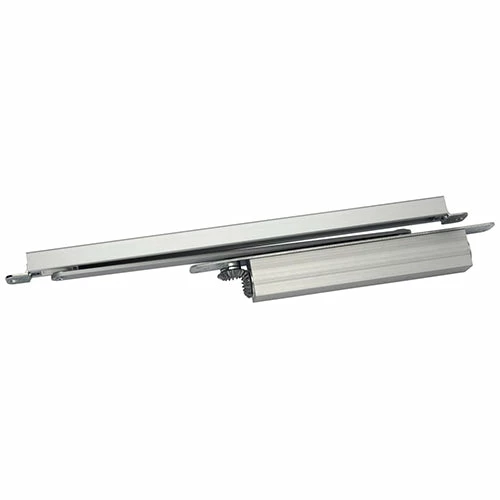

LOCKWOOD 8014 CONCEALED DOOR CLOSER

Original price was: $519.00.Current price is: $96.99.

SKU: Door Closers 767680086065 Categories: Door Closers, Handles & Hardware Tags: Door Closers, Lockwood

No Compromise on Quality
Service that stands out, online and always timely.
Protecting Your Payment Information
Free Shipping, Quality Goods

Description
Reviews (0)

*Special Order product – please allow up to 5 business days for dispatch*

The Lockwood 8014 is a non handed cam action concealed door closer for heavy duty use. Thanks to the cam construction it is extremely light to open but strong enough to close the door in every situation.

The Lockwood 8014 can be adjusted to meet the requirements of the light opening resistance.

Features of the 8014 Concealed Door Closer

Certified to EN1154
Adjustable closing force size EN 1-4
Separate adjusting valves for closing and latching speed, mechanical BC
Pressure relief valve to protect against abuse
Wide operating temperature range:- 15 to 45°C
For fire door applications add 2516-153 opening damper

Specification

Power	EN adjustable 1 to 4
Materials	Anodized aluminium door closer body
Door Thickness	Minimum 40mm
Door Weight	Maximum 80kg
Door Width	Maximum 1100mm
Finishes	Silver (SIL)
Opening Angle	Maximum 120°

Standards and Compliance

Lockwood Concealed Door Closers have been successfully fire tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 – Part 1: Fire Resistant Doorsets.

Dimensions
8014 Concealed Door Closer Dimensions
