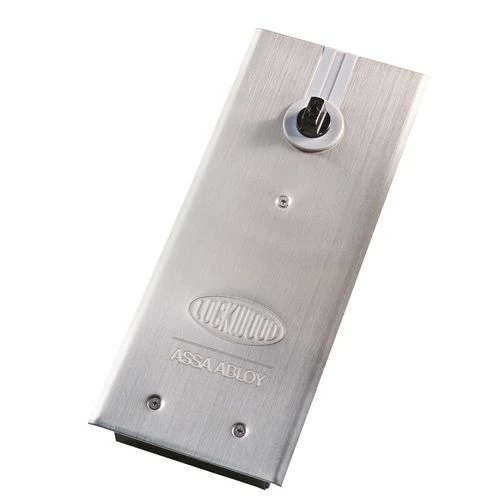

LOCKWOOD 8800 SERIES FLOOR SPRING Door Closers

*Special Order product – please allow up to 5 business days for dispatch*

The Lockwood 8800 Series Floor Closers are designed to provide door control on manually operated double action doors in a wide range of commercial applications.

The mounting kit provided with the Lockwood 8800 Series will suit glass, timber and aluminium frame door construction as standard.

Features of the 8800 Series Floor Closer

• 2, 3 and 4 power
• Non hold-open
• 90˚ and 105˚ hold-open
• Adjustable pivot inserts
• Pivot door sets
• Lockwood guaranteed

Product details:

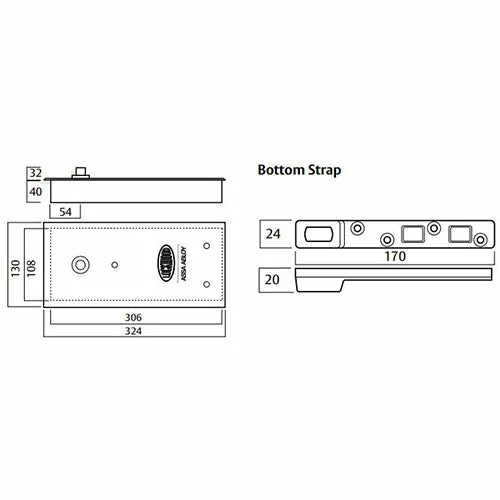

• Door Adjustment  – The Lockwood 8800 is positionally adjustable for a height of 4mm, a width of 10mm and a length of 9mm.
• Door Control  – Two independent adjustment valves provide full hydraulic control from 130˚ to 15˚ of closing and 15˚ to 0˚ of latching.
• Door Frame Type – Timber/aluminium/steel
• Door Thickness – Minimum for timber 32 mm
• Door Weight – Up to 120kg as standard
• Door Width – Up to 1150mm (refer to selection procedure)

Parts included:

• Floor Spring
• Bottom Strap
• Top Pivot
• Top Pivot Housing
